MIL8 1.37x1.22x10m Hesco Bastion Barrier System for Perimeter Security and Flood Protection

Name: MIL8 137x122x10m Hesco Bastion Barrier System for Perimeter Security and Flood Protection
Brand: JQ, Orientland
Price: 9.9 USD

Quality MIL8 1.37x1.22x10m Hesco Bastion Barrier System for Perimeter Security and Flood Protection for sale

Brand Name : JQ, Orientland

Model Number : JQDB08

Certification : ISO9001:2015,SGS

Place of Origin : Anping, China

MOQ : 50Units

Price : USD9.9-20.9/Unit

Supply Ability : 3000 Units per Month

Delivery Time : 10 to 15 days

Packaging Details : Wooden Pallet, Iron Pallet or nude packing

Size : 1.37x1.22x10m

Number of cells : 9cells

Mesh Diameter : 4.0 mm

Mesh Size : 76.2X76.2mm

Spring Wire Diameter : 4.0mm

Geotextile Density : 250g/m2

Surface Treatment : Hot Dipped Galvanized before Welding

Advantage : Easy Assembled

Main Usage : Camp Bastion

Type : Protective Equipment

Service Life : 15-20 years

High Light : HESCO Defensive Barriers, HESCO Bastion

Contact Now

MIL8 1.37x1.22x10m Hesco Bastion Barrier System for Perimeter Security and Flood Protection

Products introduction

Expeditionary Barriers is a kind of welded mesh barrier, welded gabion modular container, assembled into various size by spiral wire, lined with heavy-duty geo-textile material which thickness is 2mm, and the density is 200g-400g/m2. It is also known as military bastions barrier, mainly used for flood control, military fortification, perimeter security and defense walls.

MIL8 1.37x1.22x10m Hesco Bastion Barrier System for Perimeter Security and Flood Protection

Specifications

Material:	Hot-dipped galvanized steel wire or zinc-aluminum alloy steel wires.
Wire Diameter	4 mm or 5 mm.
Mesh Size	50 × 50 mm, 75 × 75 mm, 76.2 × 76.2 mm, 50 × 100 mm, 100 × 100 mm, etc
Geotextile	320g, 400g heavy duty non-woven polypropylene
Geotextile color	White, beige, Military Green and other customized colors.

Model	Height (M)	Width(M)	Length(M)	No. of cells
MIL1	1.37	1.06	10	5+4=9cells
MIL2	0.61	0.61	1.21	2cells
MIL3	1.0	1.0	10	5+5=10cells
MIL4	1.0	1.5	10	5+5=10cells
MIL5	0.61	0.61	3.05	5cells
MIL6	1.68	0.61	3.05	5cells
MIL7	2.21	2.13	27.74	5+4+4=13cells

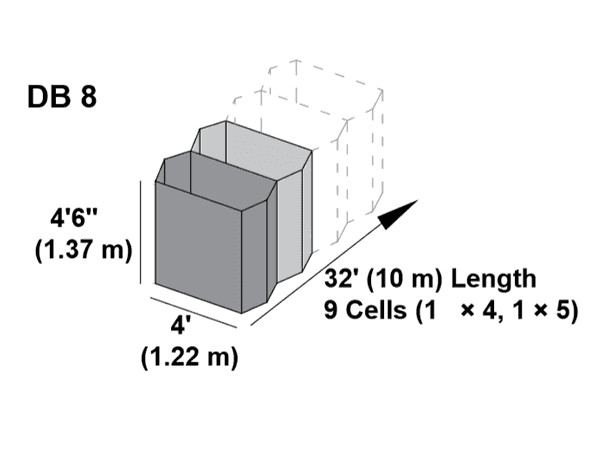

MIL8	1.37	1.22	10	4+5=9cells
MIL9	1.0	0.76	9.146	6+6=13cells
MIL10	2.13	1.52	30.5	5+5+5+5=20cells
MIL1.9	2.74	1.06	3.3	6cells
EPW1	2.1	1.06	33	......

MIL8 1.37x1.22x10m Hesco Bastion Barrier System for Perimeter Security and Flood Protection

MIL8 1.37x1.22x10m Hesco Bastion Barrier System for Perimeter Security and Flood Protection
Barrier Installation

The defensive barriers are engineered to provide a rapidly deployed high-level security fence for the protection of critical infrastructure and assets.

Combining the central concept of the Concertainer system, these fences are ground-mounted and proven to withstand vehicle borne attacks.

Each model is ground mounted, can be built on undulating or sloping ground and available in heights up to 5m (16in), creating a formidable barrier.

MIL8 1.37x1.22x10m Hesco Bastion Barrier System for Perimeter Security and Flood Protection

Product Features

All mil units are lined with a non-woven, uv-resistant geotextile with a five-year field life they can cope with harsh environments. each unit is available in beige (as default) or green standard colors.
The units are available in a range of heights and widths to provide protection against various threats including vehicles.
The geotextile-lined barriers are available in a recoverable format so you can quickly release the fill simply be removing the pin.
Units can be transported in containers or flat-bed vehicles for a quick clean up.

MIL denfensive barrier applications:

Defensive walls
Forward operating bases
Accommodation bunkers
Perimeter security
Blast and ballistic protection
Command & control centres
Training grounds & shoot houses
Military compounds
Ammunition storage
Explosive traverses
Vehicle check points
Hostile vehicle mitigation
